Sensor Actuator M12 Y Splitter Coupler Cable A Code 5 Pin Connector

Description

Introduction:

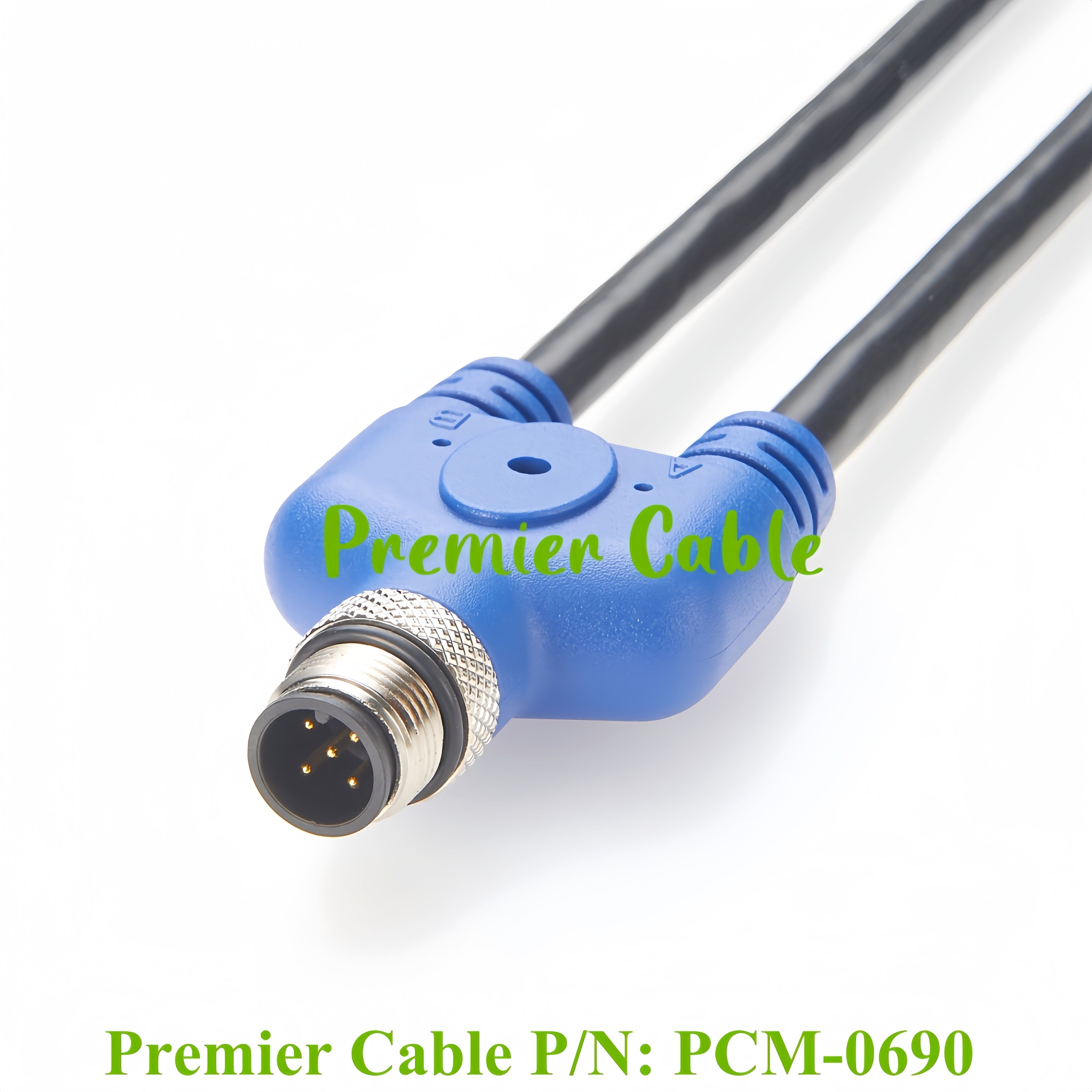

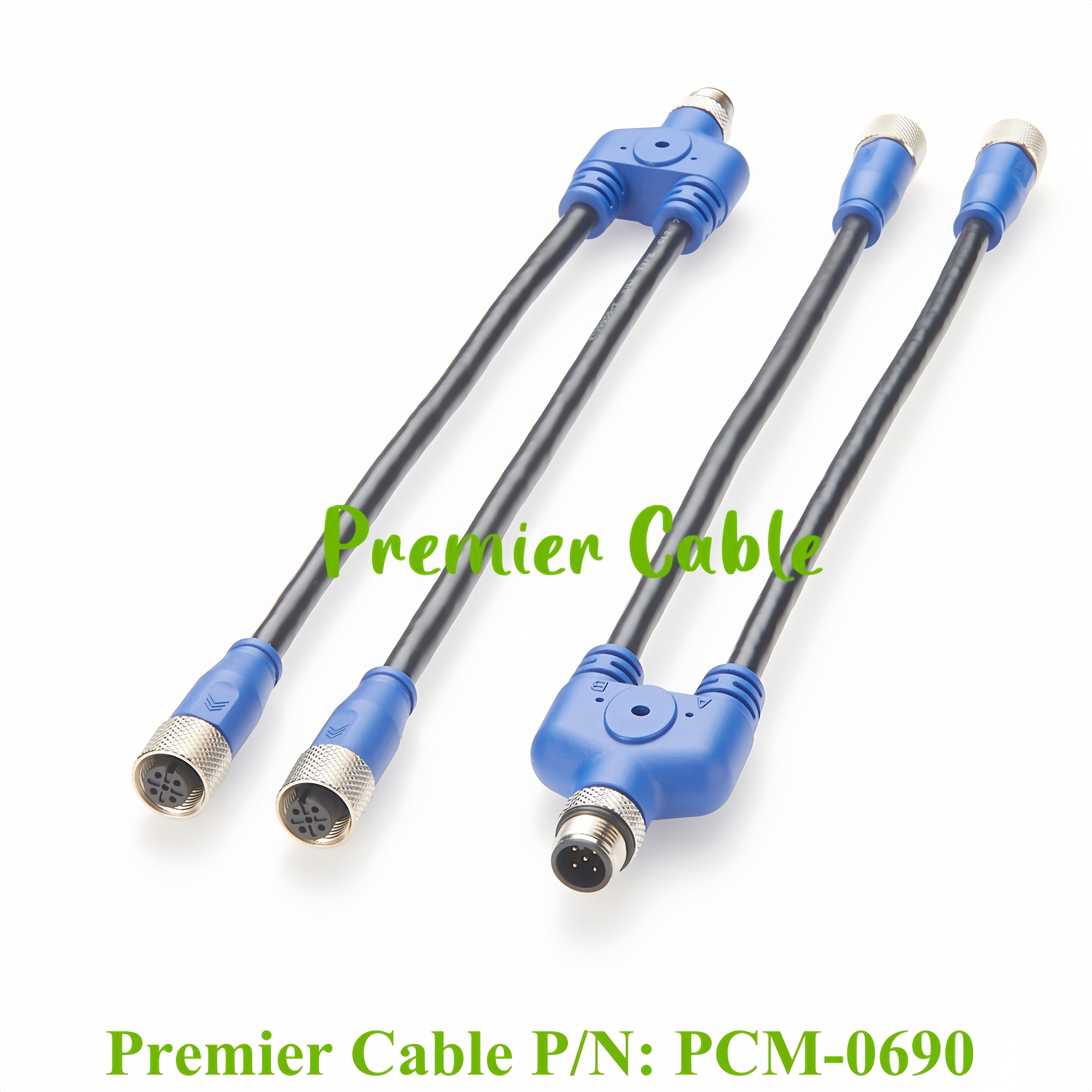

M12 Y Splitter (1 Push-2) Connector Cable is commonly used to connect sensors, actuators, and various data communication buses, such as NMEA2000, CAN Bus, DeviceNet, and CANOpen in a variety of industrial and Marine applications. Premier Cable P/M: PCM-0690

Specification：

Features:

1. Position Flexibility: M12 Y splitter configuration allows for devices to be placed at different locations while still sharing the same power and data source.
2. Varied Lengths and Options: M12 Y-Type Cable is available in different lengths. Besides, customized lengths, shielded or unshielded variants, and connector orientations are of your choice.
3. Versatile Connectivity: It can connect two separate devices or sensors that utilize M12 A Code 5 Pin connectors to a single source. It is easier to integrate and expand for sensor and actuator networks.

Application:

1. Sensor-Actuator Applications: M12 Y Splitter Connector Cable can connect sensors and actuators to the control system to control and regulate the operation of the equipment.
2. NMEA2000 Applications: NMEA2000 is a communication protocol used between ships and shipborne equipment. On Marine electronics and instrument boards, M12 connectors can be used to connect GPS receivers, wind speed sensors, or other equipment to NMEA2000 buses for data sharing and device control.
3. CAN Bus Applications: CAN Bus is also a data communication protocol widely used in automotive and industrial control systems. It can connect various sensors in the car and control modules to the CAN bus for real-time data transmission and vehicle control.
